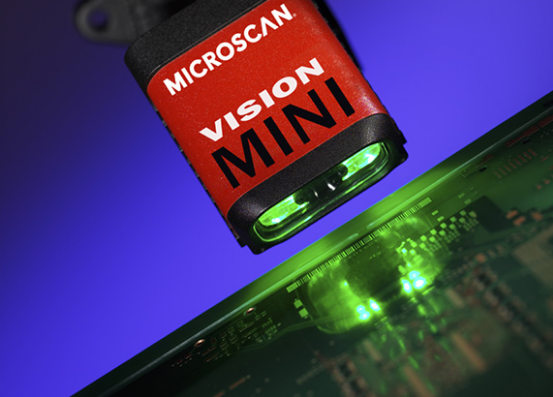

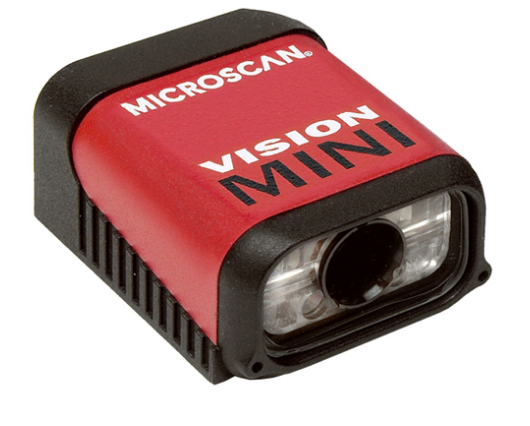

視覺迷你智能相機旨在為嵌入式識別和檢測應用提供可靠的視覺性能。作為輕巧緊湊的完全集成化的視覺系統，VisionMini極為緊湊的尺寸和廣角光學特征為開展近距離的機器視覺工作提供了優良性能。

OEM設計工程師可憑借視覺迷你在單個緊湊型的視覺方案中快速實施穩健檢測、色彩匹配、讀碼和OCR等工作。

造型緊湊，重量極輕：視覺迷你輕巧緊湊的完全集成化的智能相機。憑借其緊湊外觀可在狹小空間內活動自如.經久耐用的鎂合金外殼，重量不足2盎司.(57克)。

功能強大：它作為一款強大的工具套件可憑借視覺技術解決各類自動化難題.自動視覺軟件帶有直觀界面、詳細指導和模板庫，可輕松進行設置和應用.

可靠性及長壽命：視覺迷你性能極佳且可靠，可保證長時間使用。這對OEM商尤為重要，因?yàn)樗麄儾幌Ｍ诋a(chǎn)品的使用周期中出現障礙，從而可以專注新品開發而非故障問題.

Vision MINI 智能相機: 功能

讀取一維和二維碼
光學字符識別（OCR）
動態零件定位
裝配驗證
尺寸測量

另加 Visionscape 選項:

圖像轉換和縮放
精密校準
自定義視覺工具（腳本）
程序控制功能
50+機器視覺工具

邁思肯Microscan Vision MINI迷你智能相機配件表
Part Number	Description
98-000215-01	Demo Kit, AutoVISION - supports Vision MINI and Vision HAWK
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210/MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890
61-000127-02	Cable, Quadrus MINI to MS-Connect 210, 6 ft
FIS-0001-0035G	IC-332, Connects MINI to IB-131
99-000018-01	IB-131, Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
61-300026-03	Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft
61-100029-03	Cable, IB-131 Daisy Chain, 1 ft
20-500013-01	DeviceNet Protocol Box
61-000011-02	Cable, MS-820 to IB-131 (also use for MS-3, 4, 9, 710 and MINI Extension)
98-000098-01	Kit, Quadrus MINI Diffuser
Power Supply
97-000012-02	100-240 VAC, +24VDC, TRK 3Pin, USA/Euro Plug
Mounting and Connectors
98-000048-01	Mounting Arm/Adapter Kit, 4 inch, Vision MINI
98-000054-01	Kit, Mounting Stand Base Plate, Vision MINI
98-000053-01	Extension Kit, 4 inch, Vision MINI
98-000053-02	Extension Kit, 3 inch, Vision MINI
98-000060-01	Kit, Bracket, Side Mount, Vision MINI
98-000059-01	Kit, Bracket, Angle Mount, Vision MINI
98-000057-01	Kit, Bracket, Through Hole Mount, Vision MINI
98-000088-01	Kit, Right Angle Mirror
20-610024-01	Trigger Connector for IB-131, 4-pin Plug
20-610020-01	Power Connector for IB-131, 3-pin Socket
99-000055-01	Accessory, Bracket, DOAL 50 to MINI
99-000057-01	Accessory, Bracket, DOAL 75 to MINI
99-000059-01	Accessory, Bracket, DOAL 100 to MINI
99-000053-01	Accessory, Bracket,R-60/70 to MINI
99-000054-01	Accessory, Bracket,R-100 to MINI
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, Dark On
99-000017-02	Photo Sensor, Visible, NPN, Light On
99-000019-01	Photo Sensor, Visible, NPN, Light On, 5VDC

邁思肯Microscan Vision MINI迷你智能相機型號表
Part Number	Description
Vision MINI Smart Camera - SXGA 1.3 MP
GMV-6300-2110G	Vision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION
GMV-6300-2112G	Vision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape
GMV-6300-2210G	Vision MINI Smart Camera, USB, HD, SXGA (1.3MP), Built in Light, AutoVISION
GMV-6300-2212G	Vision MINI Smart Camera USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape
GMV-6300-2114G	Vision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Verification/OCV
GMV-6300-2116G	Vision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape + Verification/OCV
GMV-6300-2214G	Vision MINI Smart Camera, USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Verification/OCV
GMV-6300-2216G	Vision MINI Smart Camera USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape + Verification/OCV
Vision MINI Smart Camera - QXGA Color
GMV-6300-2172G	Vision MINI Smart Camera, USB, STD, QXGA (Color), Built in Light, with Visionscape
GMV-6300-2272G	Vision MINI Smart Camera, USB, HD, QXGA (Color), Built in Light, with Visionscape
Vision MINI Smart Camera - WVGA Global Shutter
GMV-6300-2100G	Vision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION
GMV-6300-2102G	Vision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape
GMV-6300-2200G	Vision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION
GMV-6300-2202G	Vision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape
GMV-6300-2104G	Vision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Verification/OCV
GMV-6300-2106G	Vision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape + Verification/OCV
GMV-6300-2204G	Vision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Verification/OCV
GMV-6300-2206G	Vision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape + Verification/OCV

Software
Part Number	Description
98-000217-01	AutoVISION to Visionscape Upgrade
98-000217-02	AutoVISION/Visionscape Verification & OCV License Upgrade
98-000217-03	AutoVISION to Visionscape Upgrade with Verification & OCV License

邁思肯Microscan Vision MINI迷你智能相機應用

電子行業，汽車零件，模具行業，制造行業等
